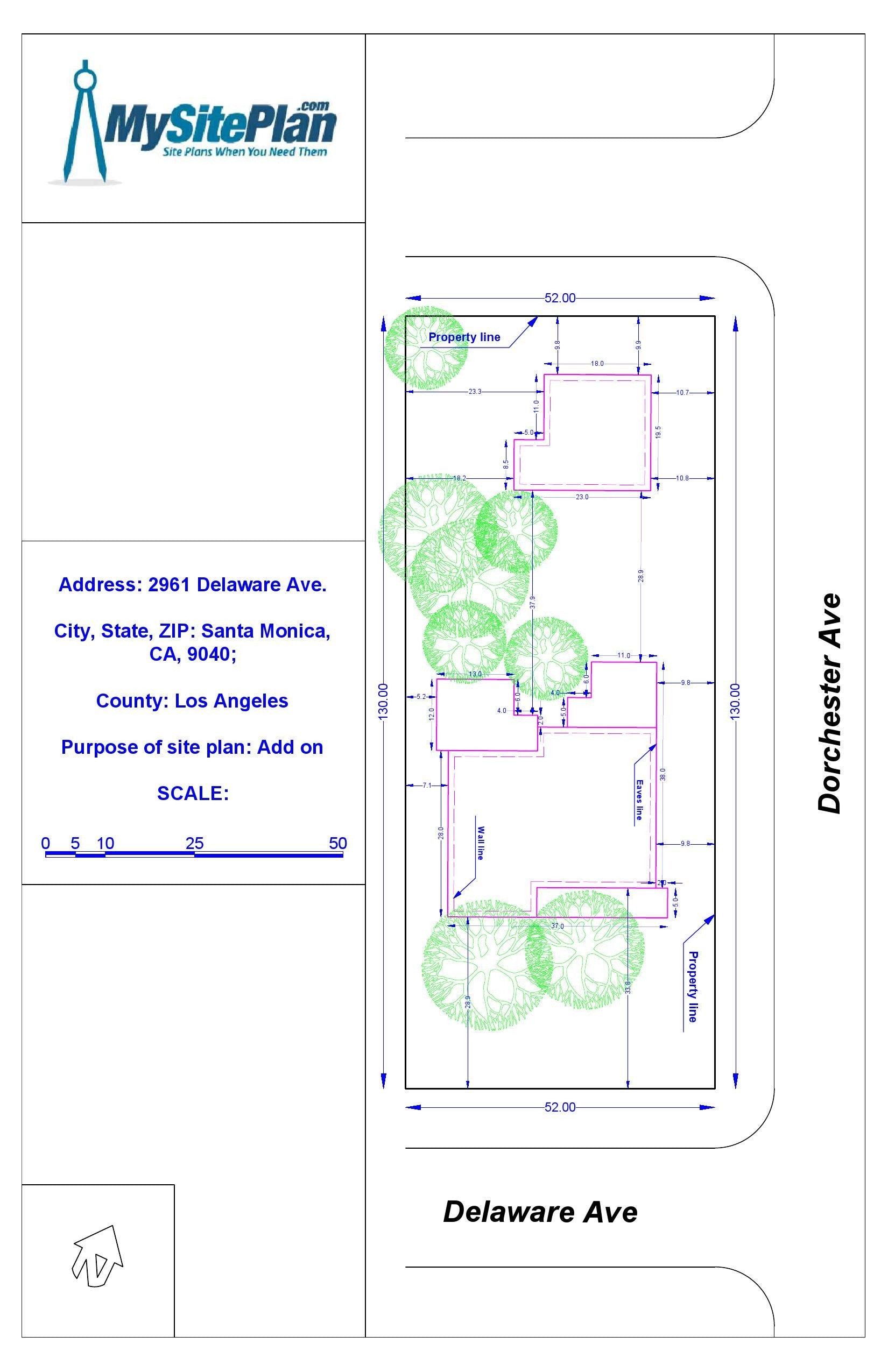

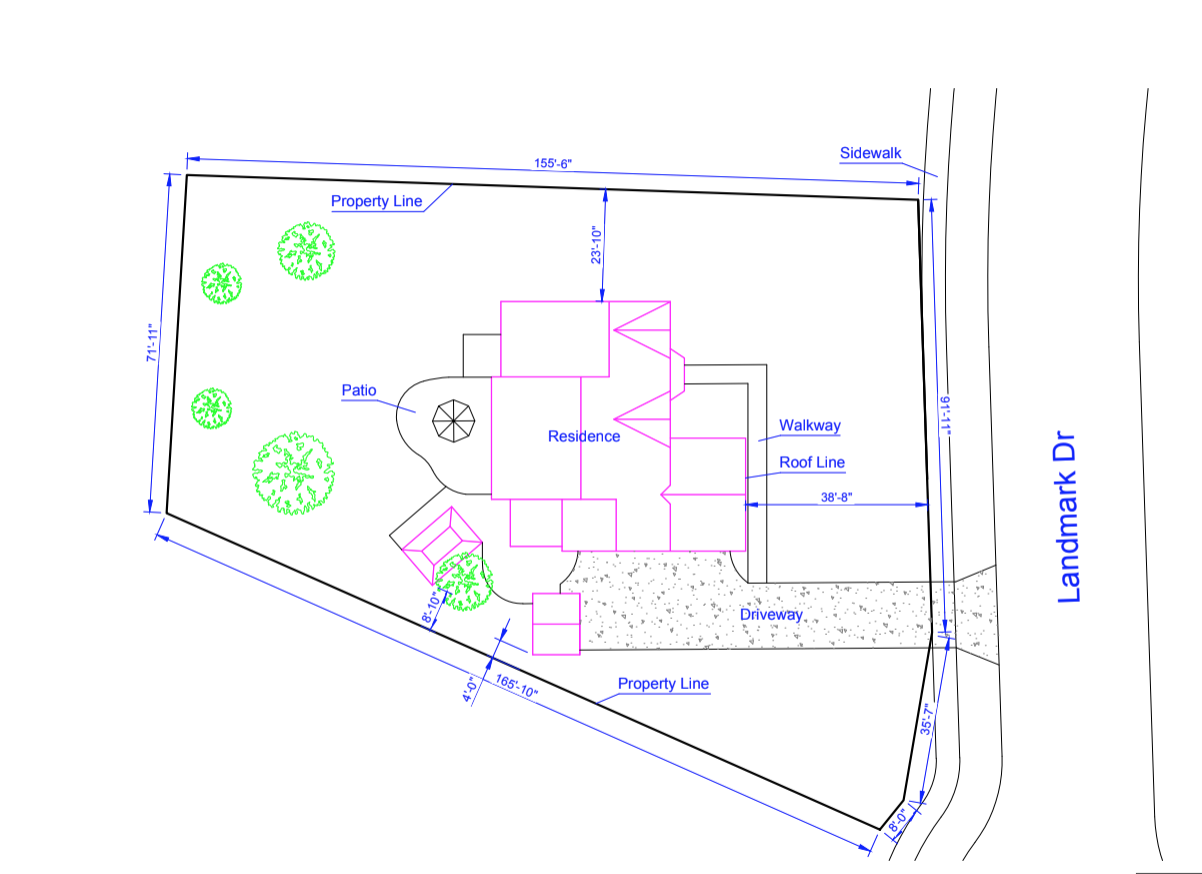

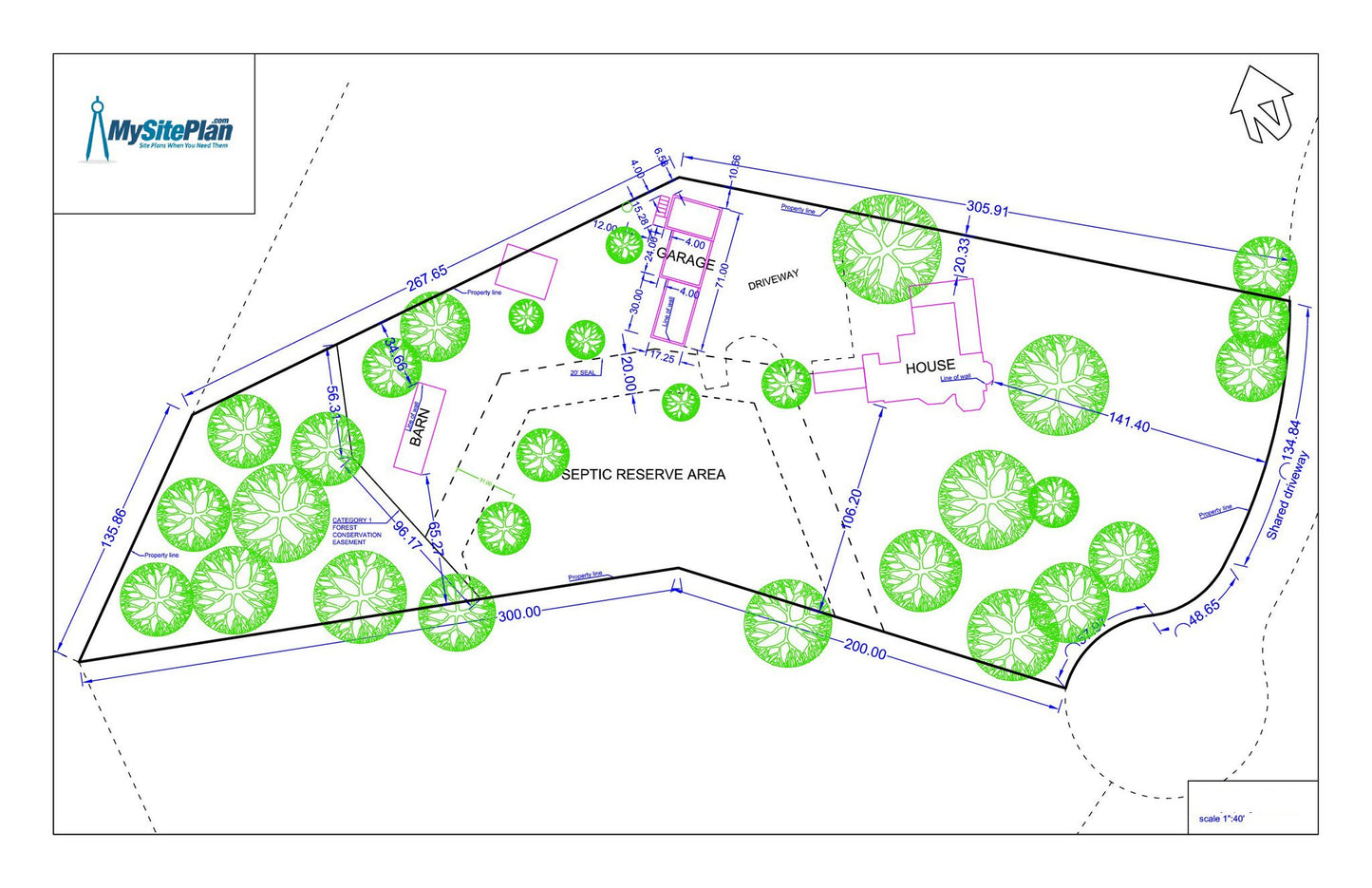

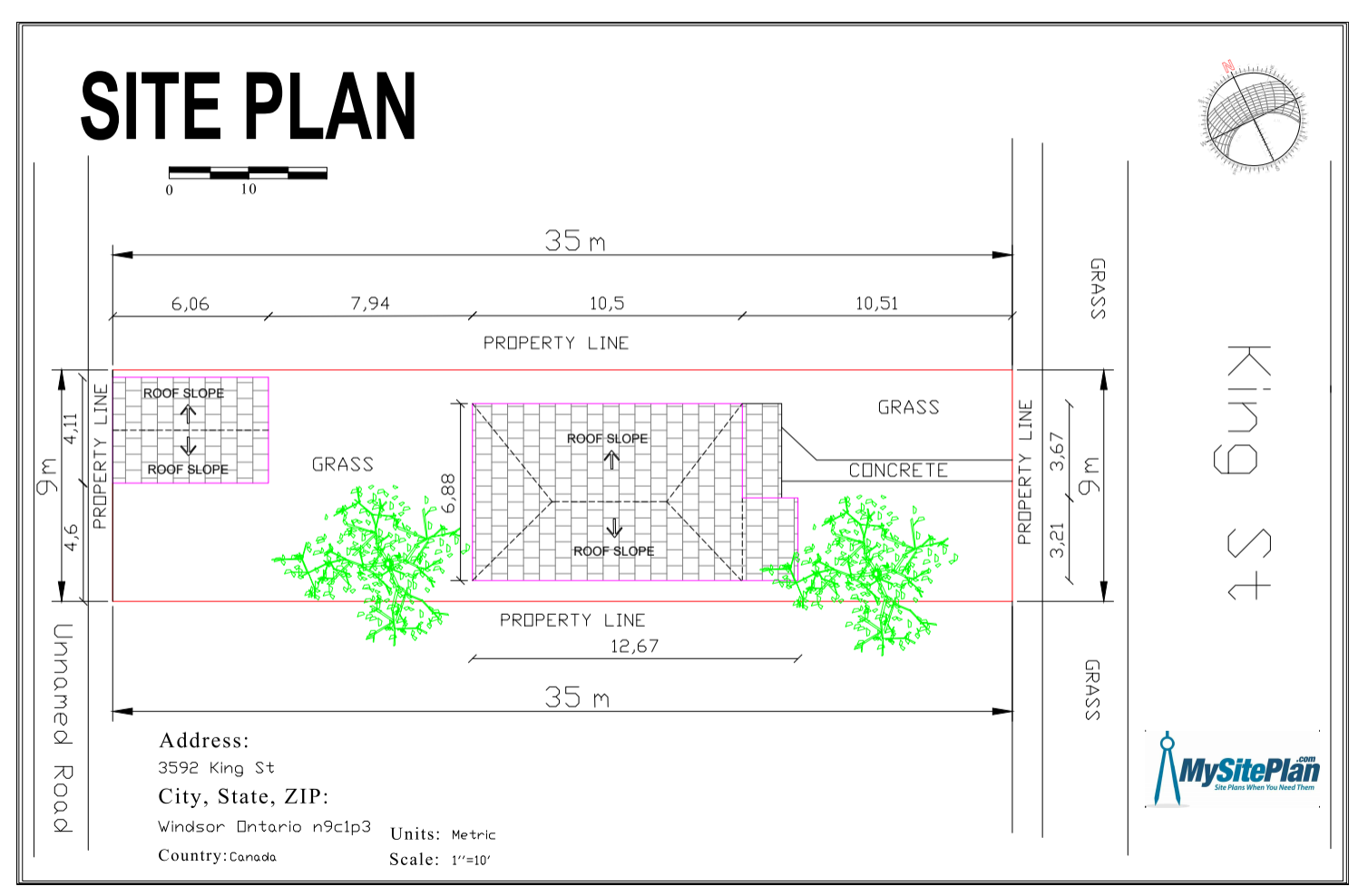

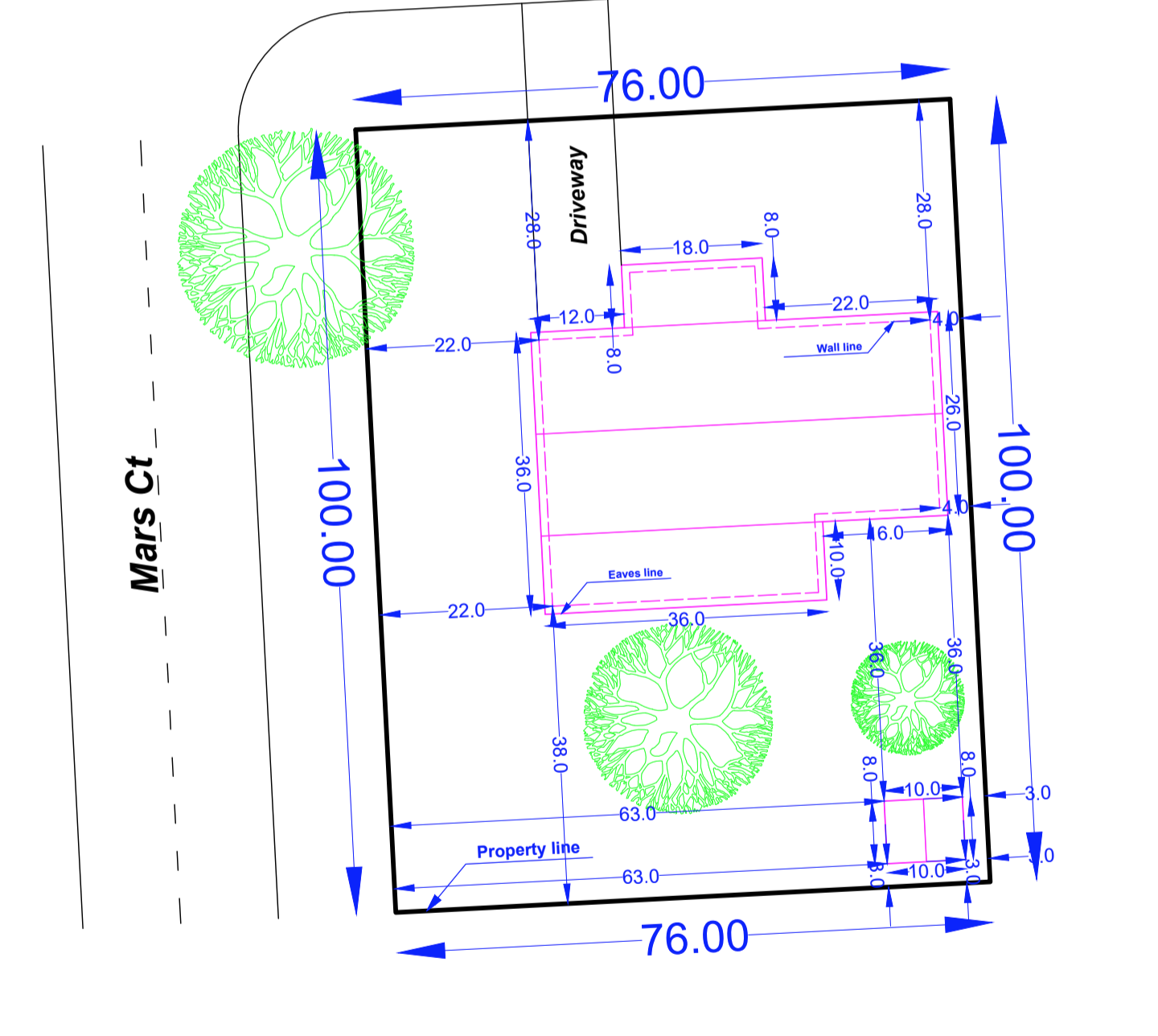

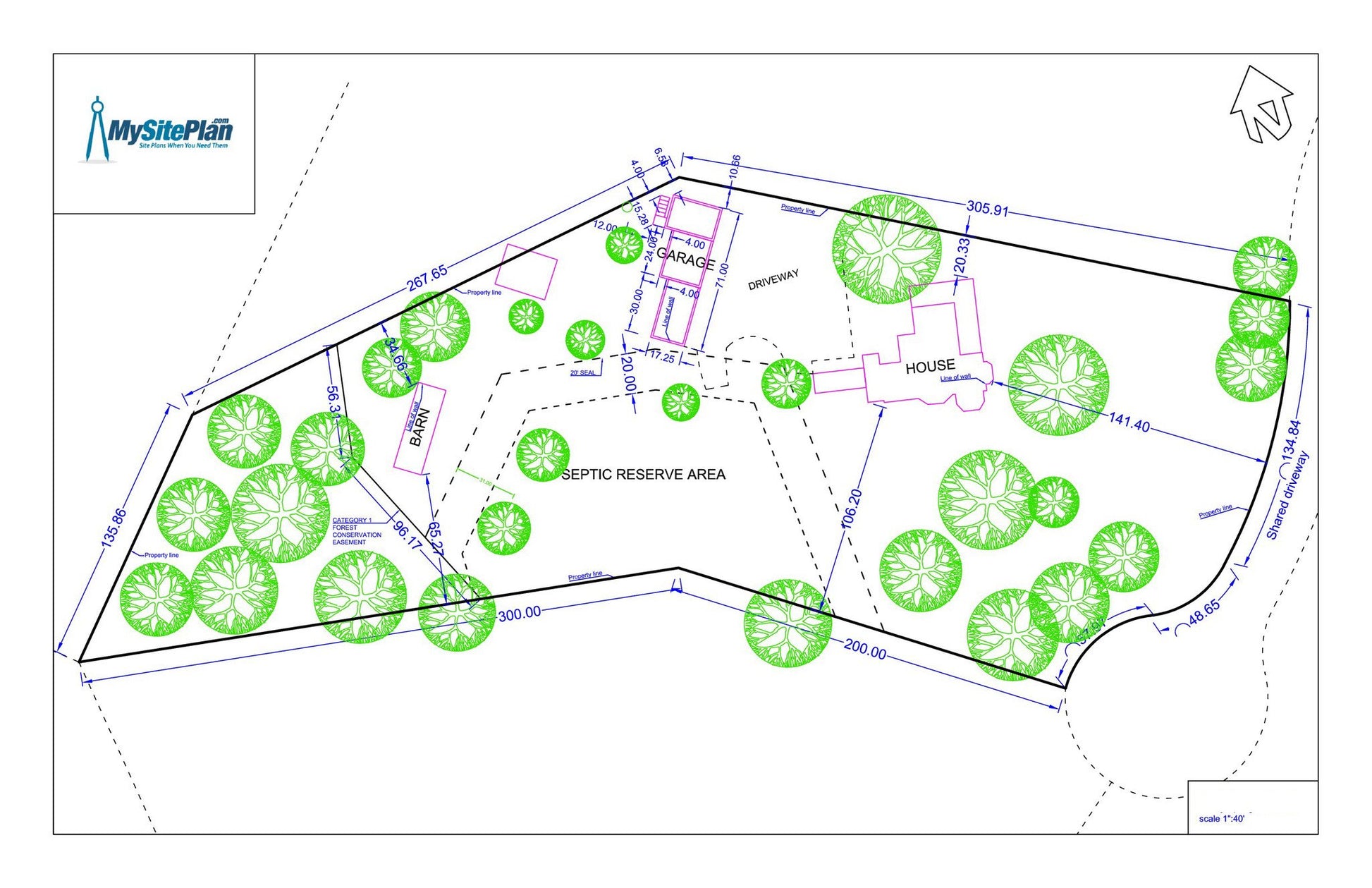

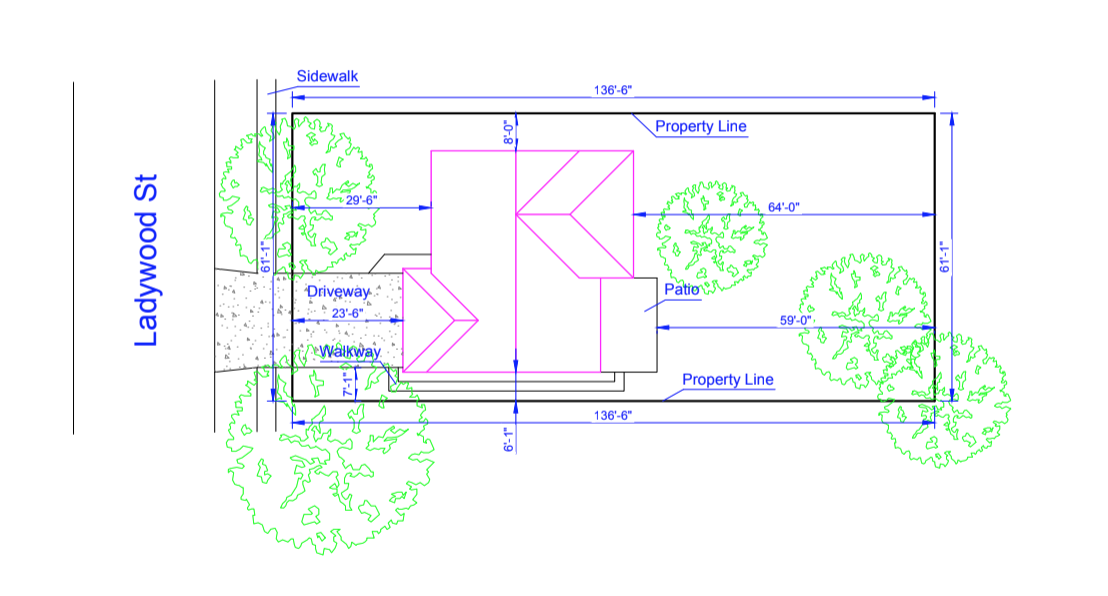

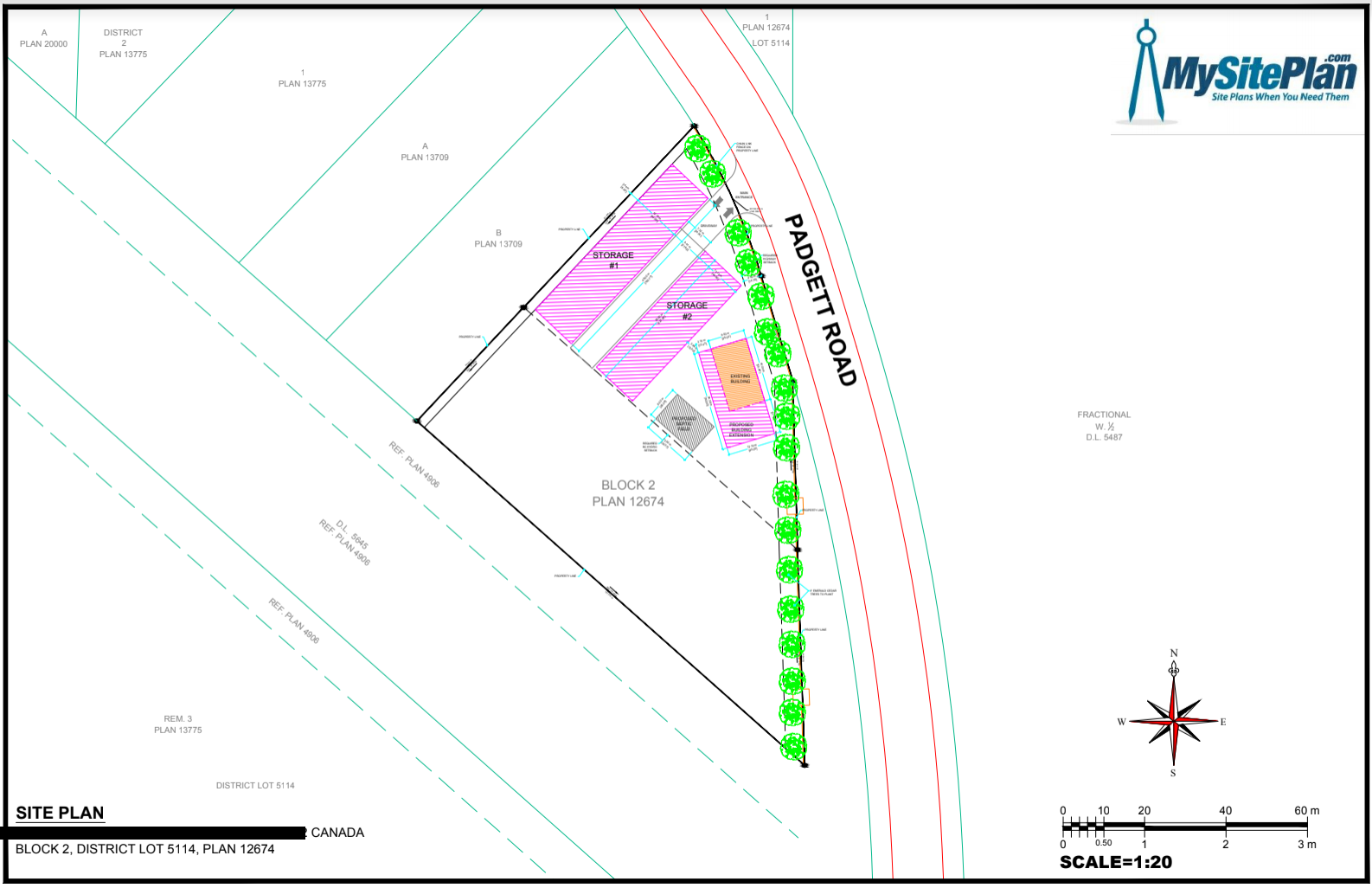

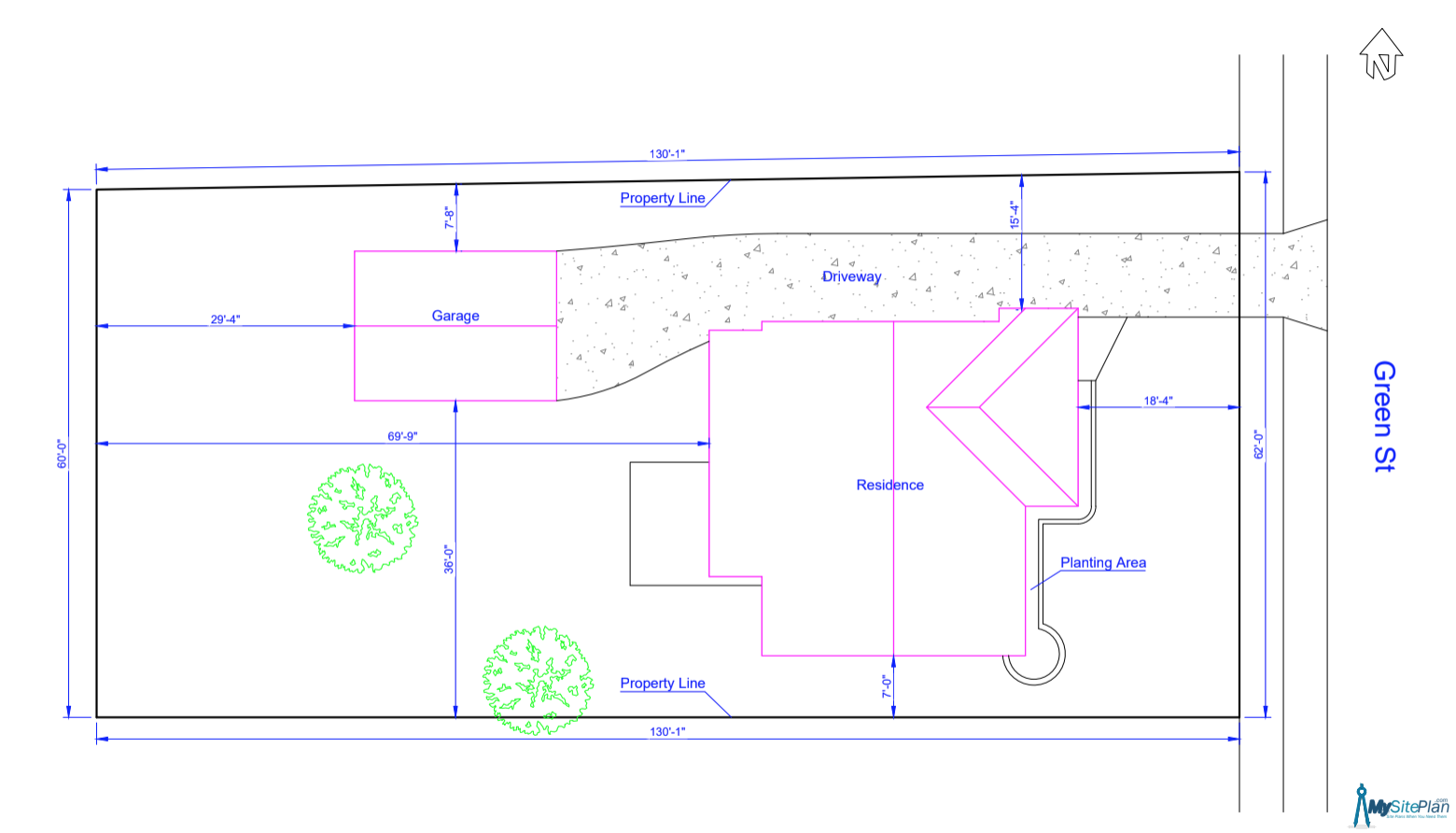

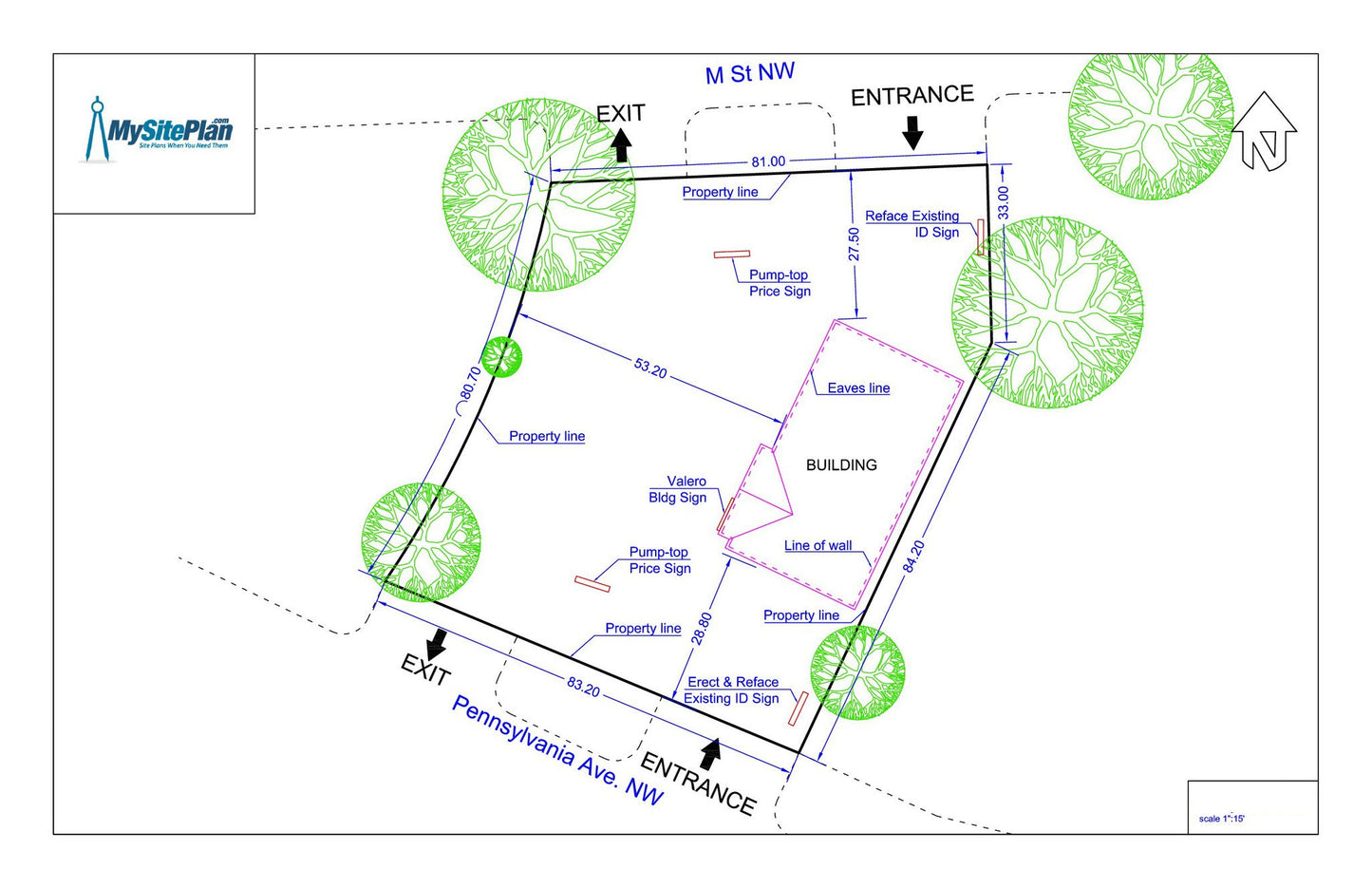

Medium Detail Site Plan

PLAN INCLUDES EXISTING FEATURES:

Property Lines
Primary Structure
Lot Dimensions
North Arrow
Scale
Measurements Between Major Features
Trees
Swimming Pool
Accessory Structures
Driveway

Product Description
Overview

The Medium Plan is widely accepted by building departments and HOA's for residential permitting purposes when a non-certified plan is allowed. Our medium detail plans include existing structures, trees, driveway, pool, and other major features while excluding details such as landscaping, paths, and parking spaces. If you have a vision for a non-existing structure on your property, we also provide the option to add it to the plan. This type of plan is the most common and essential document needed for obtaining building permits.

Uses

The medium detail plan has various uses when it comes to obtaining permits for your property. Some typical uses would be adding a deck, fence, or shed to your property. Demolitions permits for swimming pools, structures, barns, sheds. Short term rental permits. Your building department will advise you as to when a non-certified site plan is acceptable.

Additional Information

For parcels over 10 acres, please contact us to verify the pricing as it may vary. Before utilizing our service, it is essential to confirm with your local building department that they do not require your site plan to be prepared by a surveyor, architect, or engineer. It's important to note that we are a drafting firm and our plans do not include stamps, seal or signature.

$139.00
Maximum quantity available reached.

Additional Services

Floor Plans

A floor plan is a scaled diagram of the arrangement of rooms in one story of a building.

While we don't visit your home to make the measurements we are able to take a rough sketch provided by you and recreate your floor plan in AutoCAD.

If you would like for us to conceptualize a space we are able to take the exterior wall dimensions and create living spaces to your specifications. Have a 1000 square foot residence and want a 2 bedroom, 1 bath with kitchen and living area? We can create a series of options for you to understand the use of that space. This is also a popular service for commercial applications for tenant improvement possibilities.

We have done many large scale conceptual layouts for proposed Hotels, Apartment buildings, Elderly care facilities and much more.

Real Estate Marketing

Showing the full potential of a property sometimes requires more than just imagination. We can take a parcel and create visual representation of what the possibilities of that piece of land are. We create 2D and 3D concepts that show how buildings, parking, and landscape fit onto the given space. These marketing plans are great to show potential buyers, planning commissions, or investors who you need to understand your vision.

Sub Division Design

Looking at buying or own a large piece of land and want to know how many parcels will be able to fit? We can use your specifications of desired lot size, setbacks, streets, common areas, landscape, sidewalks and create a site plan that shows how that subdivision could be split. This is a great service for developers who want to understand the potential of a given piece of property.
