Basic Site Plan

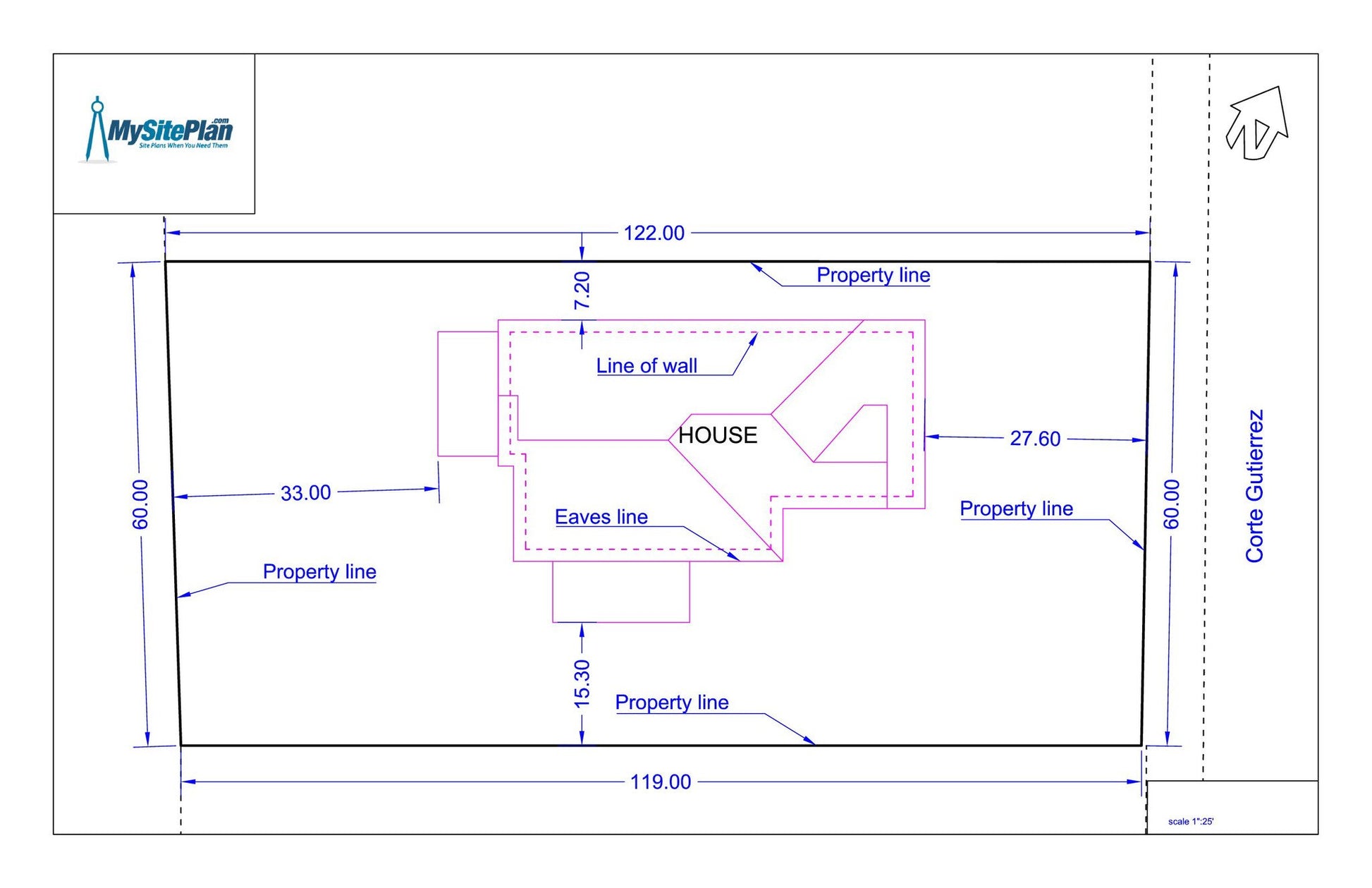

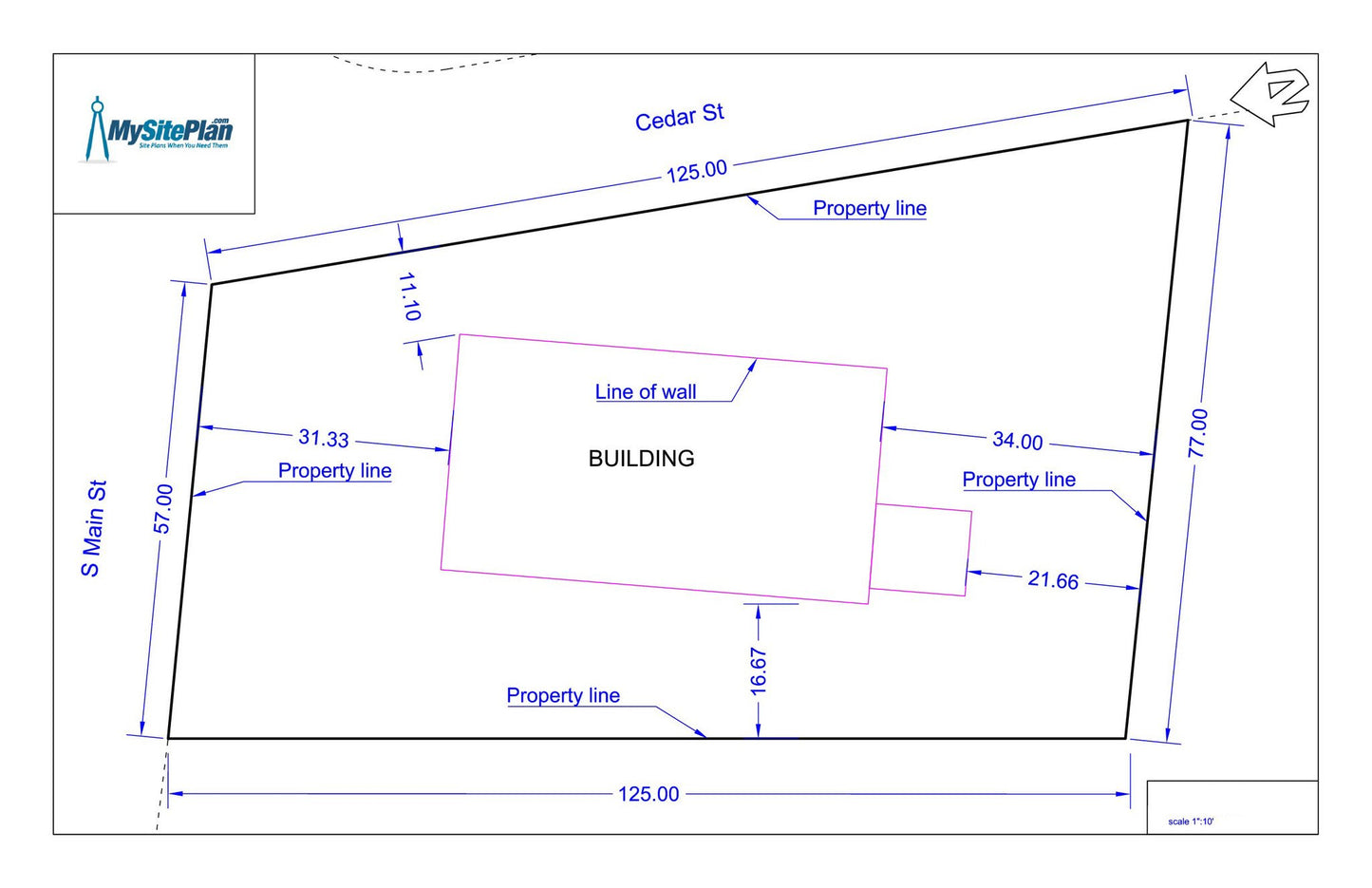

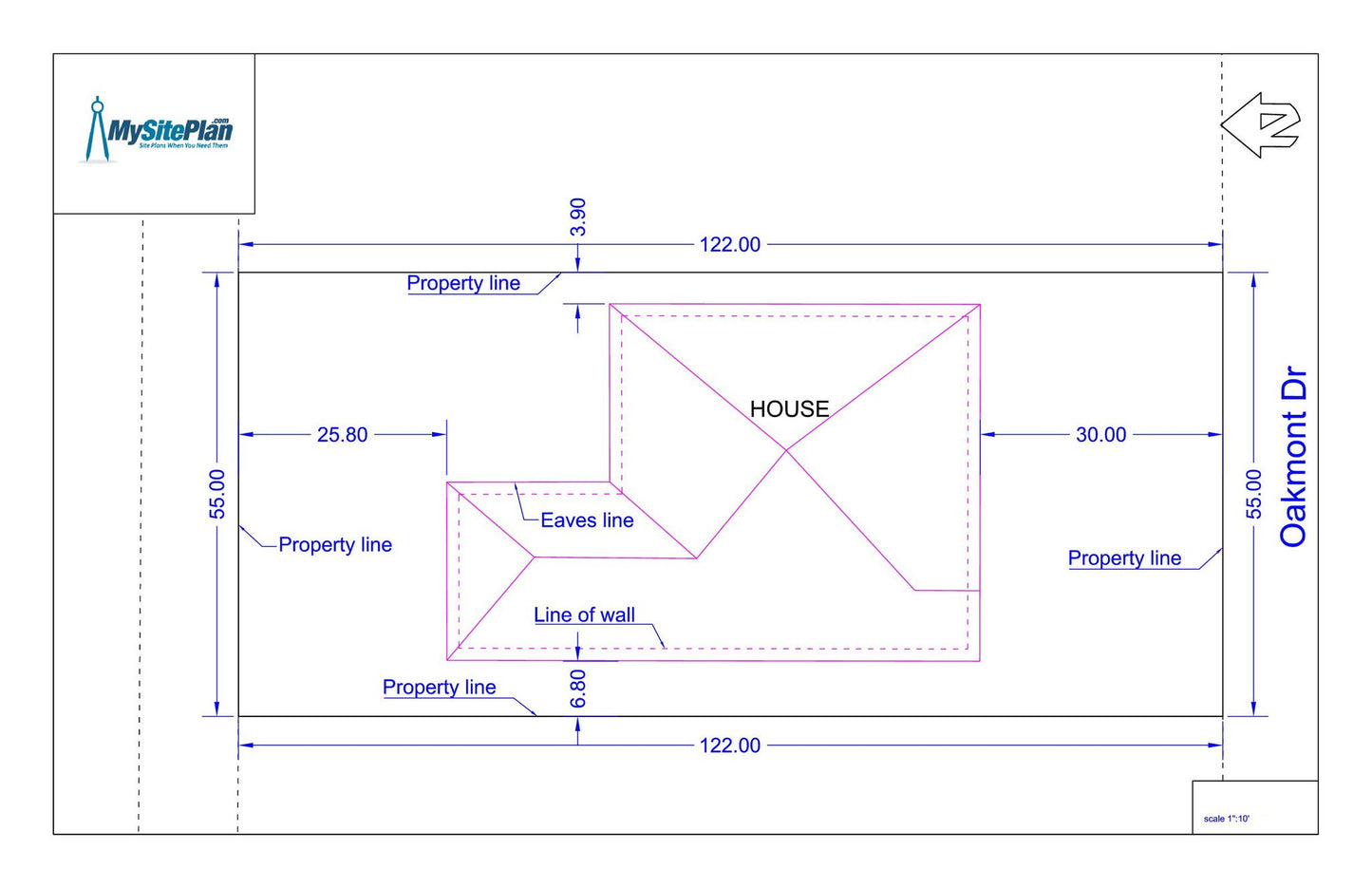

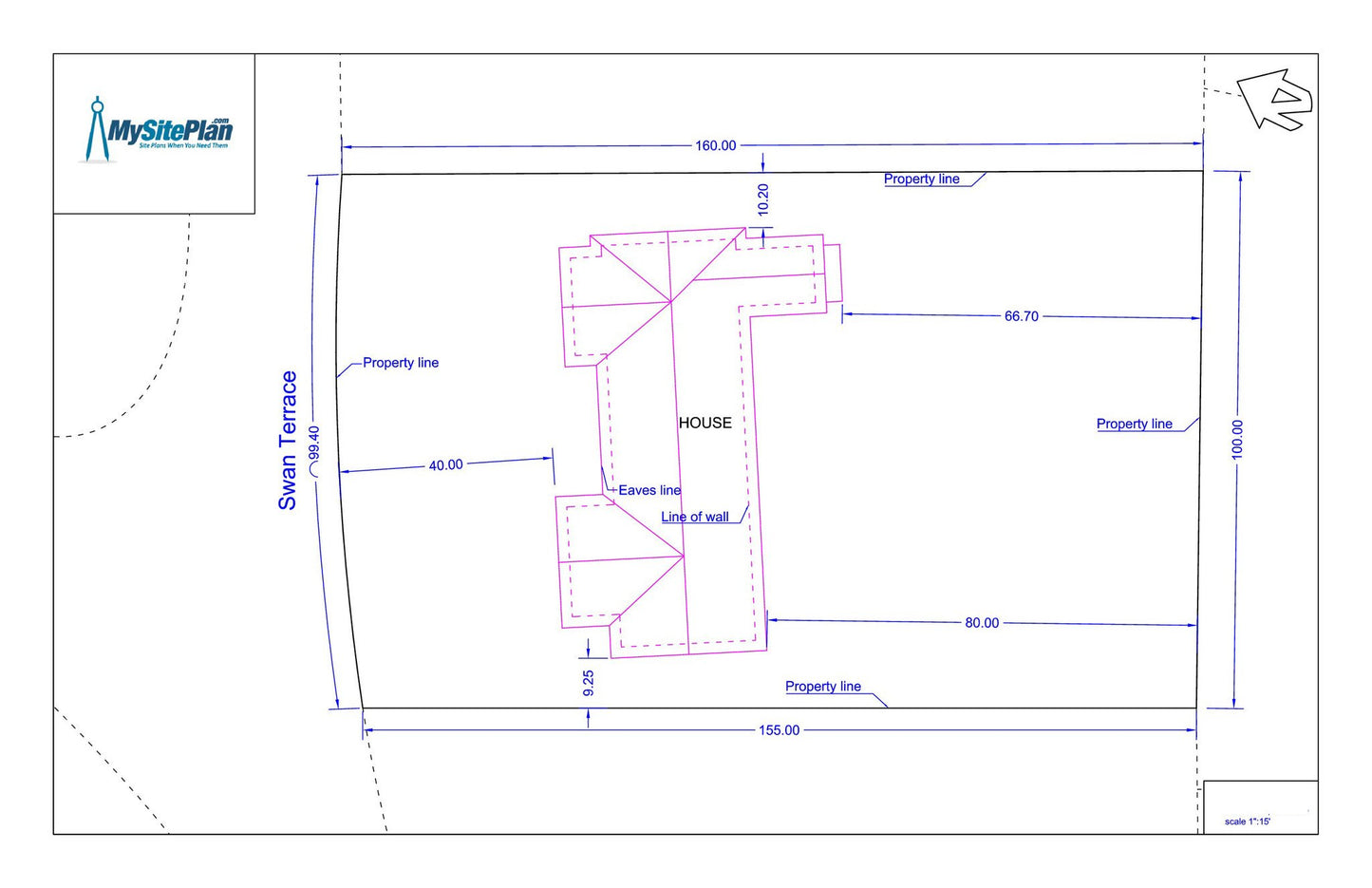

PLAN INCLUDES EXISTING FEATURES:

Property Lines
Primary Structure
Lot Dimensions
North Arrow
Scale
Measurements Between Major Features

Product Description
Overview

Our Basic Site Plan provides you with essential information about your property. It includes details such as the location of existing primary buildings, lot lines, dimensions, and a north arrow. While this plan may not be sufficient for for permitting in many jurisdictions, it is perfect when it comes to planning. Please ensure that your building department does not require your site plan to be prepared by a Surveyor, Architect, or Engineer, as we are a Drafting Firm and cannot provide stamped plans.

Uses

This site plan is primarily used to understand the length and dimensions of your lot. It can be immensely helpful if you are designing your landscape, adding new features to your property, or simply getting acquainted with your land. Moreover, this drawing allows you to see the relationship between your home and the property lines, serving as a reference point or a roadmap for any yard work or modifications you plan to undertake. You can easily mark up the plan to avoid any confusion and ensure that your instructions are followed accurately.

Additional Information

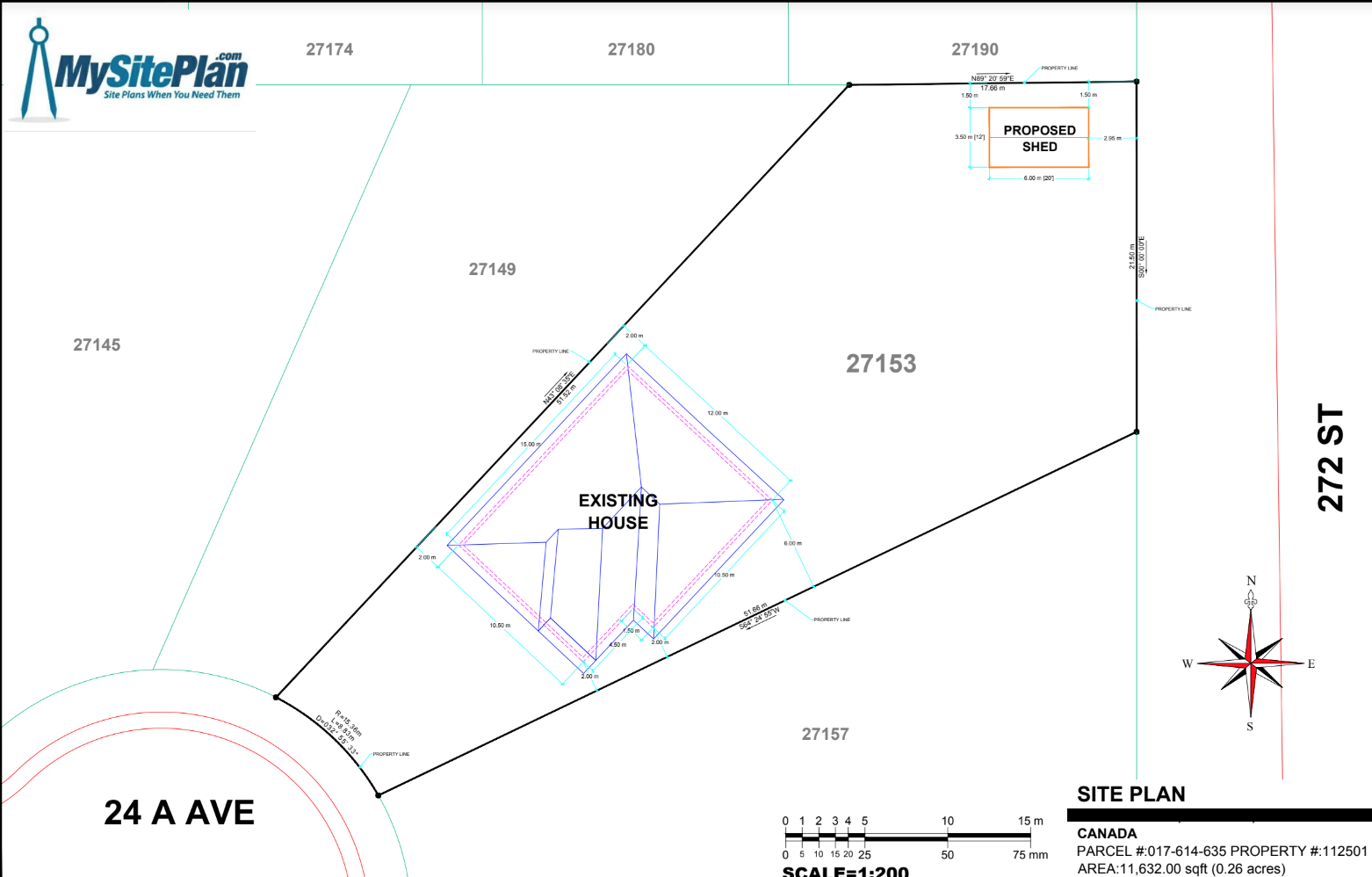

If you would like to add additional features to your plan such as adding a non-existing structure, topography, vinity map, etc. you can select those options below. If you need to upgrade to a higher plan or add these features in the future, you have 30 days to make those requests and only pay for the difference between the plans or the additional fee for the options.

$119.00
Maximum quantity available reached.

Additional Services

Floor Plans

A floor plan is a scaled diagram of the arrangement of rooms in one story of a building.

While we don't visit your home to make the measurements we are able to take a rough sketch provided by you and recreate your floor plan in AutoCAD.

If you would like for us to conceptualize a space we are able to take the exterior wall dimensions and create living spaces to your specifications. Have a 1000 square foot residence and want a 2 bedroom, 1 bath with kitchen and living area? We can create a series of options for you to understand the use of that space. This is also a popular service for commercial applications for tenant improvement possibilities.

We have done many large scale conceptual layouts for proposed Hotels, Apartment buildings, Elderly care facilities and much more.

Real Estate Marketing

Showing the full potential of a property sometimes requires more than just imagination. We can take a parcel and create visual representation of what the possibilities of that piece of land are. We create 2D and 3D concepts that show how buildings, parking, and landscape fit onto the given space. These marketing plans are great to show potential buyers, planning commissions, or investors who you need to understand your vision.

Sub Division Design

Looking at buying or own a large piece of land and want to know how many parcels will be able to fit? We can use your specifications of desired lot size, setbacks, streets, common areas, landscape, sidewalks and create a site plan that shows how that subdivision could be split. This is a great service for developers who want to understand the potential of a given piece of property.
