Site Plans For Permits
We offer three standard site plans which vary in level of detail. Depending upon what you will be using your site plan for will determine which is best for you. For most building departments the medium detail plan is best. You will have the option to add additional items such as structures, vicinity map, topography and more once you select a plan. Visit our HELP CENTER for additional information.
Before ordering: Please verify with your building department that they DO NOT require that the plan to be prepared by surveyor, architect or engineer. We are a Drafting Company and do not stamp, sign or seal plans.
After Ordering: You will receive a draft of your site plan within 24 hours for your review. Should you need any edits after reviewing the plan just mark those changes on the draft and send it back to us and we will make those adjustments.
*All plans are delivered via email as a PDF

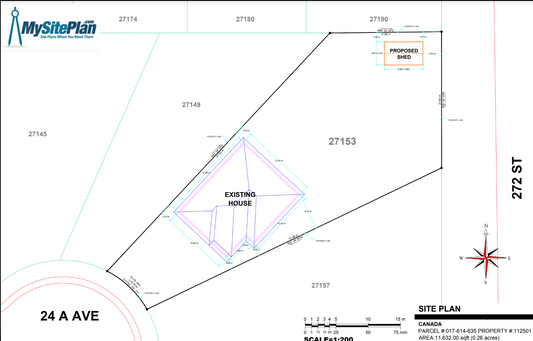

Basic Site Plan
OurĀ Basic Site Plan will give you the basics of your property. Ā This site plan will include EXISTINGĀ primary building location, lot...

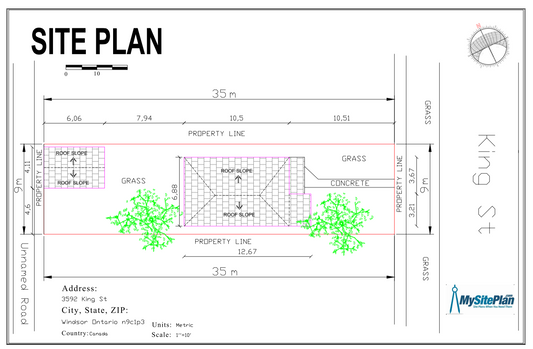

Medium Detail Site Plan
Widely accepted by building departments and HOAās for residential permitting purposes. ļ»æUsing the most recent satellite imagery and GIS Data...

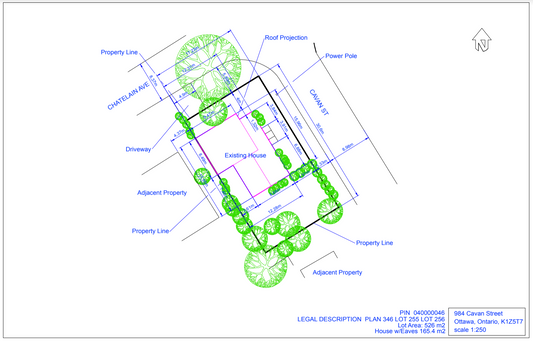

Detailed Site Plan
A higher level of detailĀ for permitting of both residential and commercial properties. Using the most recent satellite imagery and cross...
Time / Hourly Custom Work
If you received a custom quote you can purchase the quoted hours here. Ā
Can't Decide? See What's Included
Plan Name
- Property Lines
- Primary Structure
- Lot Dimensions
- North Arrow
- Scale
- Measurments Between Features
- Trees
- Driveway
- Accessory Structures
- Swimming Pool
- Parking Spaces
- Paths
- Shrubs
- Lawn
- Landscape
Plan Name |
Basic Site Plan$119.00 |
Medium Detail Plan$139.00 |
Detailed Site Plan$179.00 |
|---|---|---|---|
| Property Lines | |||
| Primary Structures | |||
| Lot Dimensions | |||
| North Arrow | |||
| Scale | |||
| Measurments Between Major Features | |||
| Trees | |||
| Swimming Pool | |||
| Accessory Structures | |||
| Landscape | |||
| Driveway | |||
| Paths | |||
| Shrubs | |||
| Lawn | |||
| Rooftdne | |||
| Select Plan | Select Plan | Select Plan |
